PITCH 16MM OUTDOOR FULL COLOR LED DISPLAY

MOQ ： piece

Lead Time ： Days

Inquiry Start Order

Payment : L/C，T/T，Western Union, Money Gram, Credit Card, Paypal

Spec

· Brightness: 7,000CD/㎡

· Model: PH16-DIP-OP

· Cabinet Size: Width: 1024mm, Height:768mm, Depth:170mm

· Cabinet Weight: 50Kgs

· Power consumption: Max: 950 w/sqm; Average : 475 w/sqm

· Application: Outdoor use, fixed install

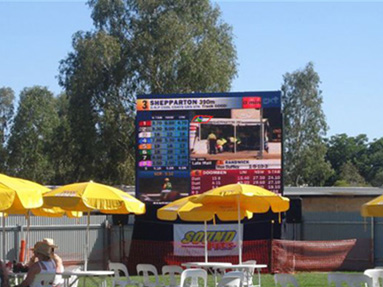

Product: PITCH 16MM OUTDOORFULL COLOR LED DISPLAY

Model: PH16-DIP-OP

Screen Size: 12.583㎡

Location: Sydney, Australia

Description: Standing styleinstallation, 8 meters minimum view distance

Model Number	PH16-DIP-OP
Description	Outdoor waterproof mental cabinets
Application	Outdoor use, fixed install
Pixel configuration	2R1G1B 5mm Oval led lamp Real pixels
Pixel pitch	16.00mm
Pixel resolution per standard cabinet	w 64 x h 48pixels
Standard cabinet dimension	Width: 1024mm, Height:768mm, Depth:170mm
Module size	Width:256mm, Height:256mm
Pixel resolution per module	W 16 x h 16 pixels
Pixel density per sq/m	3,906 dots per square meter
Minimum viewing distance	Minimum 15 meters
Brightness	7,000CD/M2
Grey scale	4096 steps
Color Number	68.7194billion
Display Mode	Synchronous with video source
Data refresh rate	≥2000HZ
Driver IC	MBI5024
LED drive	Static, constant current
Control system type	ZDEC V8
Control software name	LED manager
Viewing angle	Vertical 50° Horizontal 110°
Temperature range	-20℃ to +60℃
Ambient Humidity	10%-99%
Service access	Rear
Standard cabinet weight	50Kgs(1.024x0.768m)
Power Consumption	Max: 950 w/sqm; Average : 475 w/sqm
Protection Level	Front: IP65 Rear: IP54
Lifetime to 50% brightness	75,000hr
LED Failure Rate	<0,00001(Led display line standard <0,0001)
MTBF	> 10.000 hours
Input power cable	AC110V to 220V
Signal input	DVI
Certification	CE, ROHS, FCC marked
Warranty	2 Years quality warranty, 10 YEARS SPARE PARTS SUPPORT
