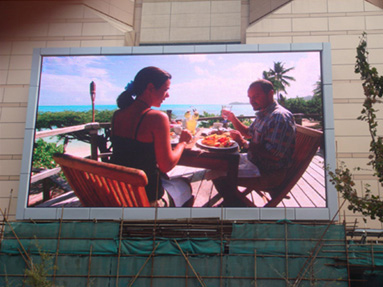

PITCH 10MM OUTDOOR FULL COLOR LED DISPLAY

MOQ ： piece

Lead Time ： Days

Inquiry Start Order

Payment : L/C，T/T，Western Union, Money Gram, Credit Card, Paypal

Spec

· Brightness: 7,000CD/㎡

· Model: PH10-DIP-OP

· Cabinet Size: Width: 960mm, Height:800mm, Depth:170mm

· Cabinet Weight: 55Kgs

· Power consumption: Max: 750 w/sqm; Average : 375w/sqm

· Application: Outdoor use, fixed install

Features:

1. For outdoor permanent use

2. With short viewingdistances less than 10metre

3. Highly durable andweatherproof

4. High brightness

5. Particularly suitable forsmall size screen advertising& truck display

Model Number	PH10-DIP-OP
Description	Outdoor waterproof mental cabinets
Application	Outdoor use, fixed install
Pixel configuration	1R1G1B 3mm Oval led lamp Real pixels
Pixel pitch	10.00mm
Pixel resolution per standard cabinet	w 96 x h 80pixels
Standard cabinet dimension	Width: 960mm, Height:800mm, Depth:170mm
Module size	Width:160mm, Height:160mm
Pixel resolution per module	W 16 x h 16pixels
Pixel density per sq/m	10,000 dots per square meter
Minimum viewing distance	Minimum 10 meters
Brightness	7,000CD/M2
Grey scale	4096 steps
Color Number	68.7194billion
Display Mode	Synchronous with video source
Data refresh rate	≥1000HZ
Driver IC	MBI5024
LED drive	1/4 scanning, constant current
Control system type	ZDEC V8
Control software name	LED manager
Viewing angle	Vertical 50° Horizontal 110°
Temperature range	-20℃ to +60℃
Ambient Humidity	10%-99%
Service access	Rear
Standard cabinet weight	55Kgs(0.96x0.80m)
Power Consumption	Max: 750 w/sqm; Average : 375w/sqm
Protection Level	Front: IP65 Rear: IP54
Lifetime to 50% brightness	75,000hr
LED Failure Rate	<0,00001(Led display line standard <0,0001)
MTBF	> 10.000 hours
Input power cable	AC110V to 220V
Signal input	DVI
Certification	CE, ROHS, FCC marked
Warranty	2 Years quality warranty, 10 YEARS SPARE PARTS SUPPORT
